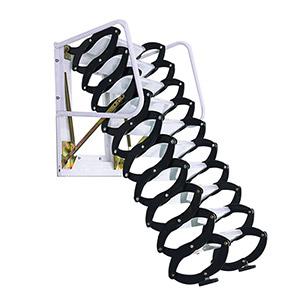

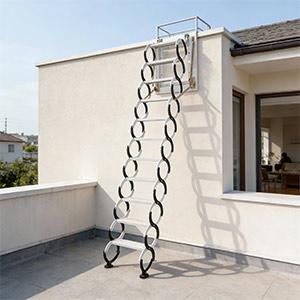

Wall Mounted Ladder – Compact Foldable Attic Ladder for Small Spaces

The Ultimate Space-Saving Ladder for Tight Attics

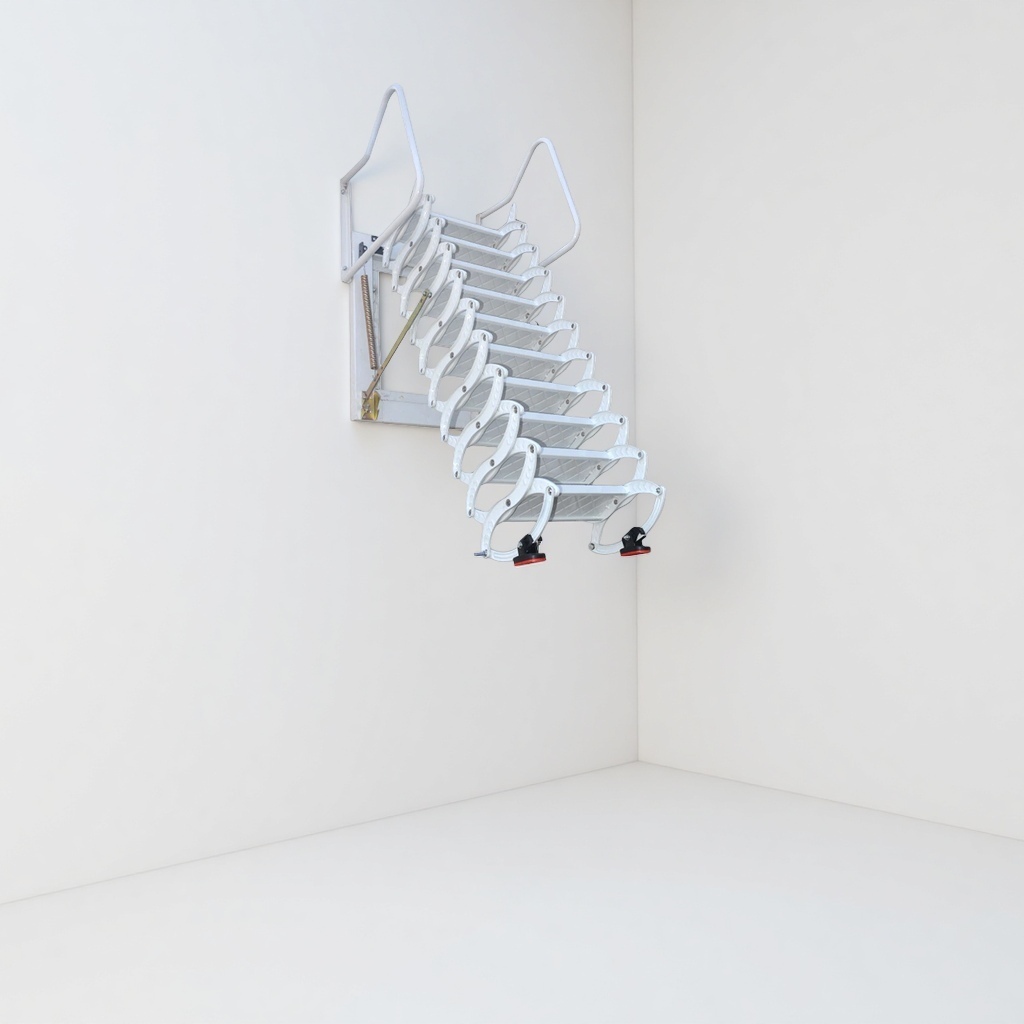

The Wall Mounted Ladder is engineered for homeowners, renters, and contractors who need occasional attic access in extremely limited spaces. Its innovative foldable ring-link structure collapses against the wall into a remarkably compact size—offering a smart alternative to bulky stair systems or fixed ladders. Whether you have a small hatch, a narrow hallway, or a garage corner, this ladder unlocks storage space without sacrificing floor area.

Key Features of the Wall Mounted Ladder

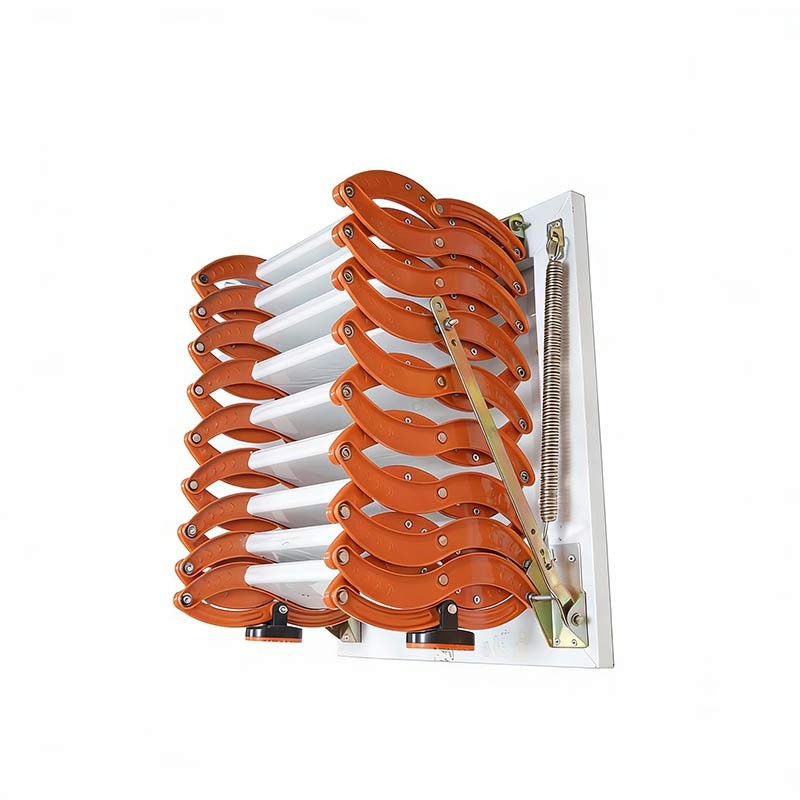

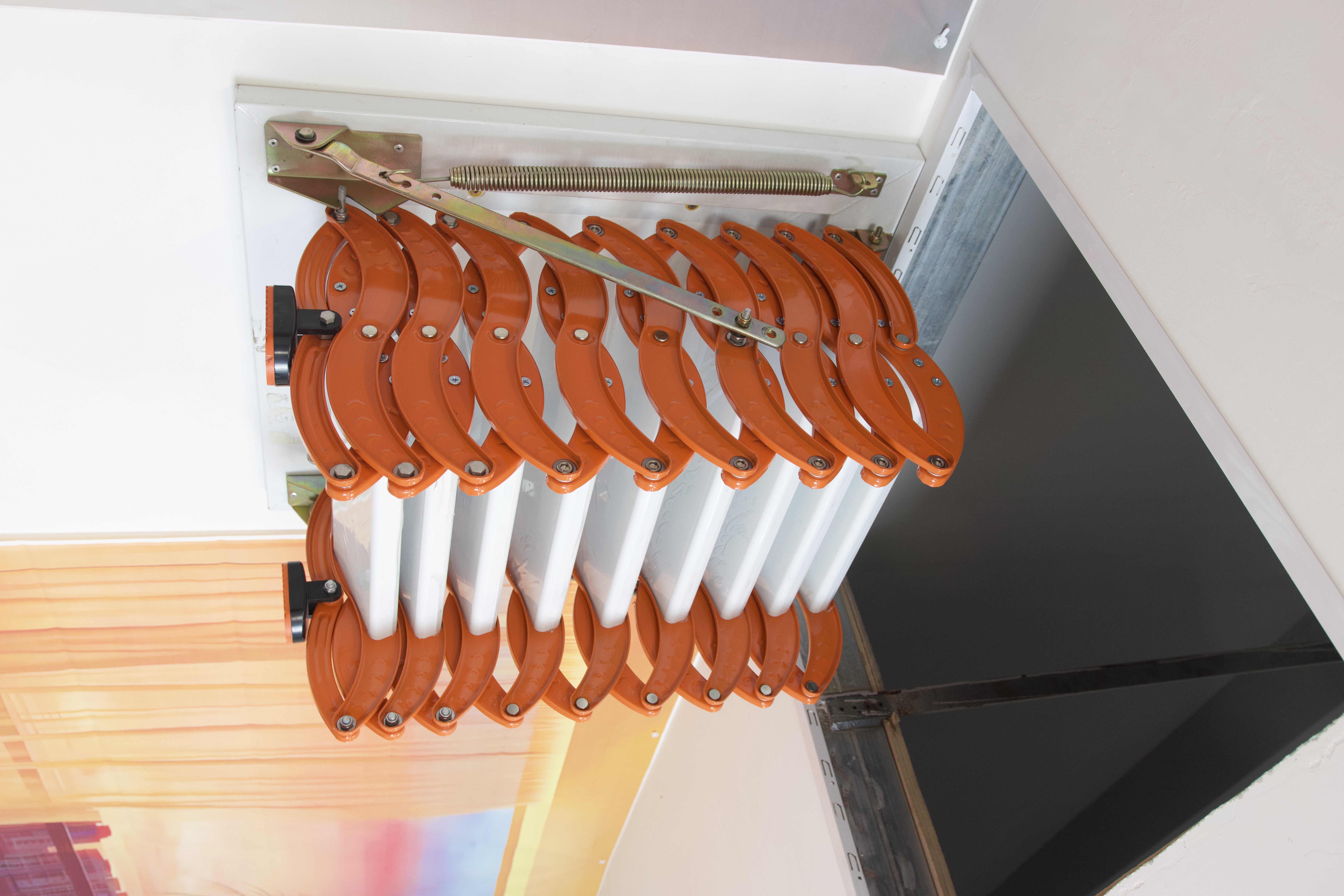

1. Ultra-Compact Folding Design

Folds to just 6–8 inches (150–200 mm) from the wall—small enough to fit behind a door, inside a closet, or above a staircase. No permanent floor obstruction.

2. Lightweight Yet Durable Aluminum Construction

Made from high-strength aluminum alloy (6061 grade) with reinforced pivot joints. It resists rust, corrosion, and daily wear, while remaining light enough for one person to fold and unfold.

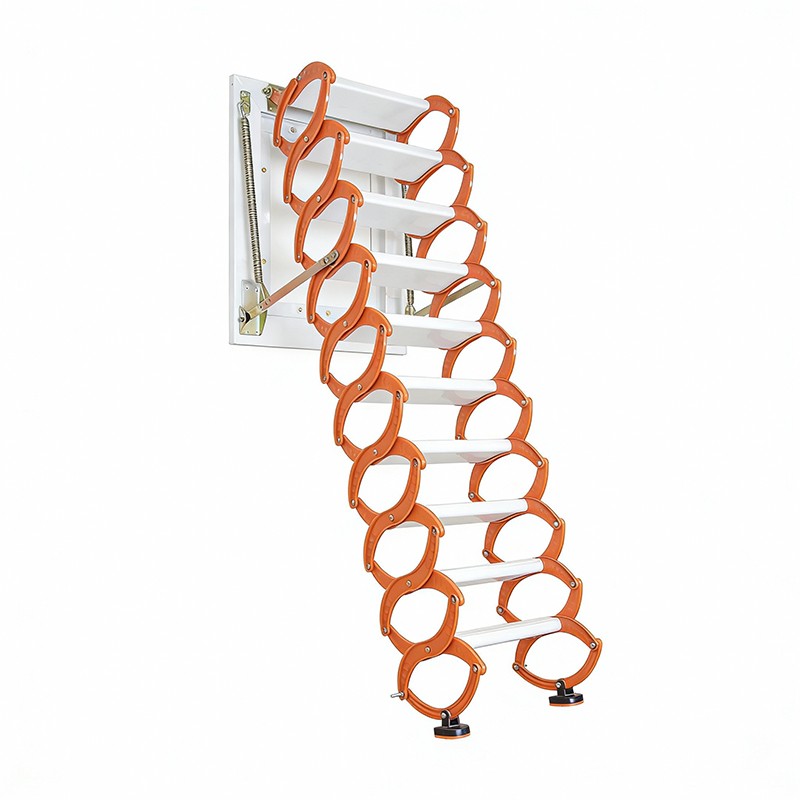

3. Smooth Extension & Retraction System

The telescopic / ring-link mechanism extends in a fluid motion and retracts without binding. Spring-assisted design reduces effort—no heavy lifting required.

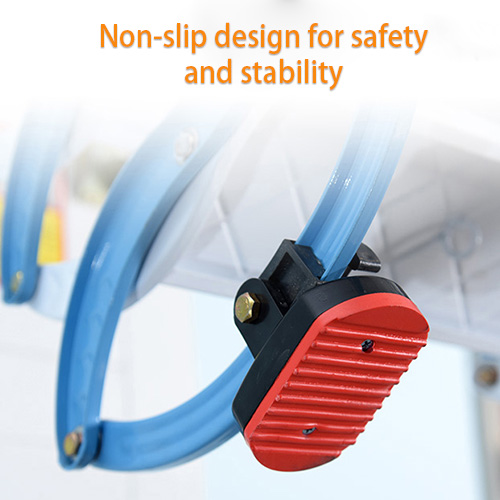

4. Anti-Slip Steps for Safer Climbing

Each step features a deeply textured anti-slip surface (or replaceable rubber inserts), providing secure footing even when wearing socks or carrying items.

Technical Specifications (Detailed)

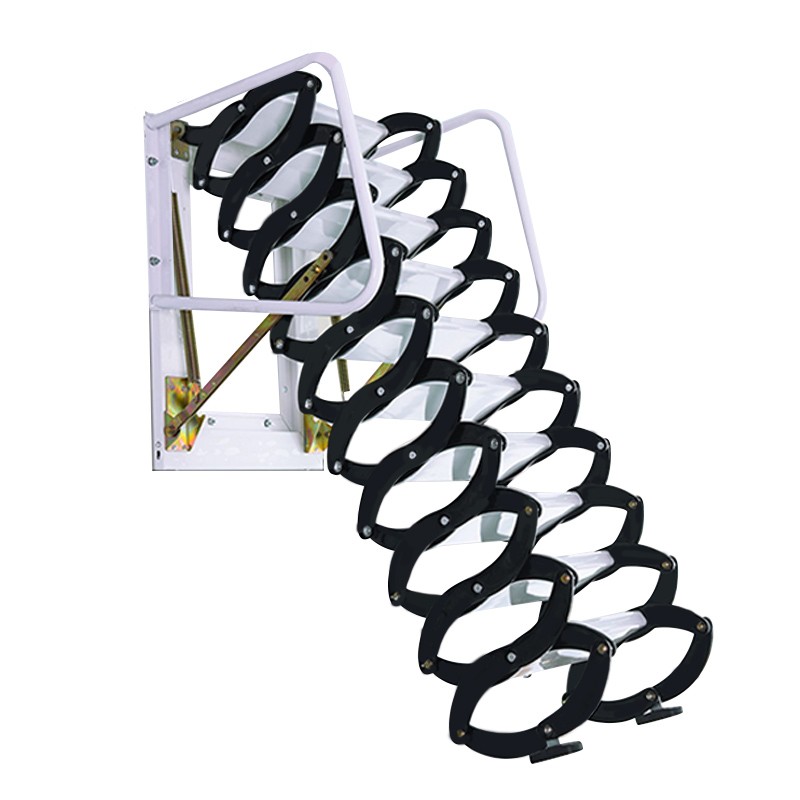

• Product Type: Wall mounted folding ladder (ring-link / telescopic system)
• Material: Aluminum alloy 6061, steel reinforcement at joints
• Folded Depth: 150–200 mm (6–8 inches)
• Extended Length: 2.0 m / 2.5 m / 3.0 m (customizable)
• Step Width: 300 mm (12 inches)
• Load Capacity: 150 kg (330 lbs) – suitable for occasional use
• Ladder Weight: 10–15 kg (22–33 lbs depending on height)
• Installation: Wall mounted (vertical or horizontal orientation)
• Usage Frequency: Occasional (weekly / monthly access)
• Color Options: Silver, White, Black (OEM custom available)

Installation Guide – 3 Simple Steps

1. Mount the wall brackets using the included heavy-duty anchors (concrete or stud mounting).
2. Attach the ladder frame to the brackets with the provided bolts.
3. Test folding operation – adjust tension screws if needed.

Full installation manual and drilling template included. Estimated installation time: 30–45 minutes for one person.

Comparison: Wall Mounted Ladder vs. Traditional Solutions

Feature	Wall Mounted Ladder	Fixed Stairs	Traditional Attic Ladder
Space required when folded	6–8 inches	Permanent footprint	Folds into ceiling opening
Installation complexity	Low (wall mount)	High (structural)	Medium (ceiling cutout)
Load capacity	150 kg (330 lbs)	200+ kg	100–150 kg
Best for	Tight spaces, occasional use	Daily heavy use	Standard ceiling hatches
Climbing comfort	Good (angled steps)	Excellent	Moderate (steep)

Choose this wall mounted ladder when every inch of floor space matters.

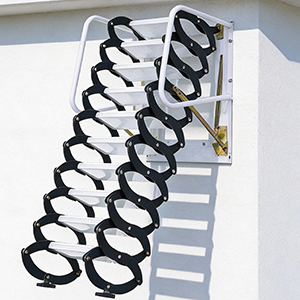

Best Use Scenarios

• Small apartments & studio lofts – where a permanent stair is impossible.
• Garage overhead storage – access seasonal items without taking up parking space.
• Utility rooms & storage sheds – narrow access points made easy.
• Temporary access areas – construction sites, event stages, or rental properties.

Quality & Testing

Every batch undergoes: load test (150 kg for 10 minutes), fold/unfold cycle test (5000 cycles), and salt spray test for corrosion resistance. CE and ISO 9001 certified production line. We provide test reports upon request.

Package Contents

• 1 x Wall mounted ladder (pre-assembled)
• 2 x Wall mounting brackets
• 8 x Expansion bolts & washers
• 1 x Installation manual (English)
• 1 x Safety instruction card
• 1 x Allen key for tension adjustment

Maintenance & Safety Tips

• Inspect pivot bolts every 3 months – tighten if loose.
• Clean steps with a damp cloth; do not use oil-based cleaners on anti-slip surfaces.
• Do not exceed 150 kg (330 lbs) load.
• Ensure the ladder is fully extended and locked before climbing.
• Keep children away when folding/unfolding.

Frequently Asked Questions

Q1: Can this ladder be installed on drywall without studs?
A: No – it must be mounted into concrete, brick, or wooden studs. We include heavy-duty anchors for solid walls.

Q2: Is the ladder suitable for daily use?
A: It is designed for occasional (weekly) access. For daily heavy use, we recommend our heavy-duty folding stairs (contact us for the alternative model).

Q3: What ceiling height does it support?
A: Standard models fit 2.2 m – 2.8 m (7.2 – 9.2 ft). Custom lengths available for higher ceilings.

Q4: Does it come with a handrail?
A: This model does not include a handrail to maintain compact folding. For users needing a handrail, please check our “Folding Stairs Against Wall” series.

Q5: How long does delivery take?
A: Stock orders: 5–10 days. OEM orders: 25–35 days after sample approval.

Why This Ladder Stands Out

Compared with traditional folding stairs or attic ladders, this wall mounted ladder offers the maximum space-saving capability on the market. It’s easy to install (one person can handle it), simple to operate, and perfect for modern compact living environments where every square foot counts. No other product gives you such a tiny folded footprint while maintaining safe climbing ergonomics.

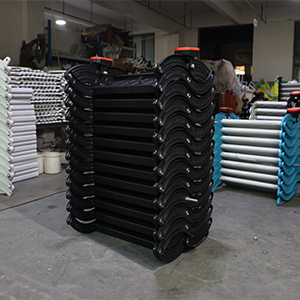

Manufacturer Supply & Customization

We are a direct factory with 10+ years of experience in access solutions. We support OEM & ODM services: size adjustment, material upgrade (stainless steel joints), custom color powder coating, and logo branding. Fast delivery, stable quality, and responsive support make us a reliable partner for global distributors, hardware stores, and home improvement brands.

Contact us today for a catalog, free sample policy, or bulk pricing. We reply within 24 hours.
