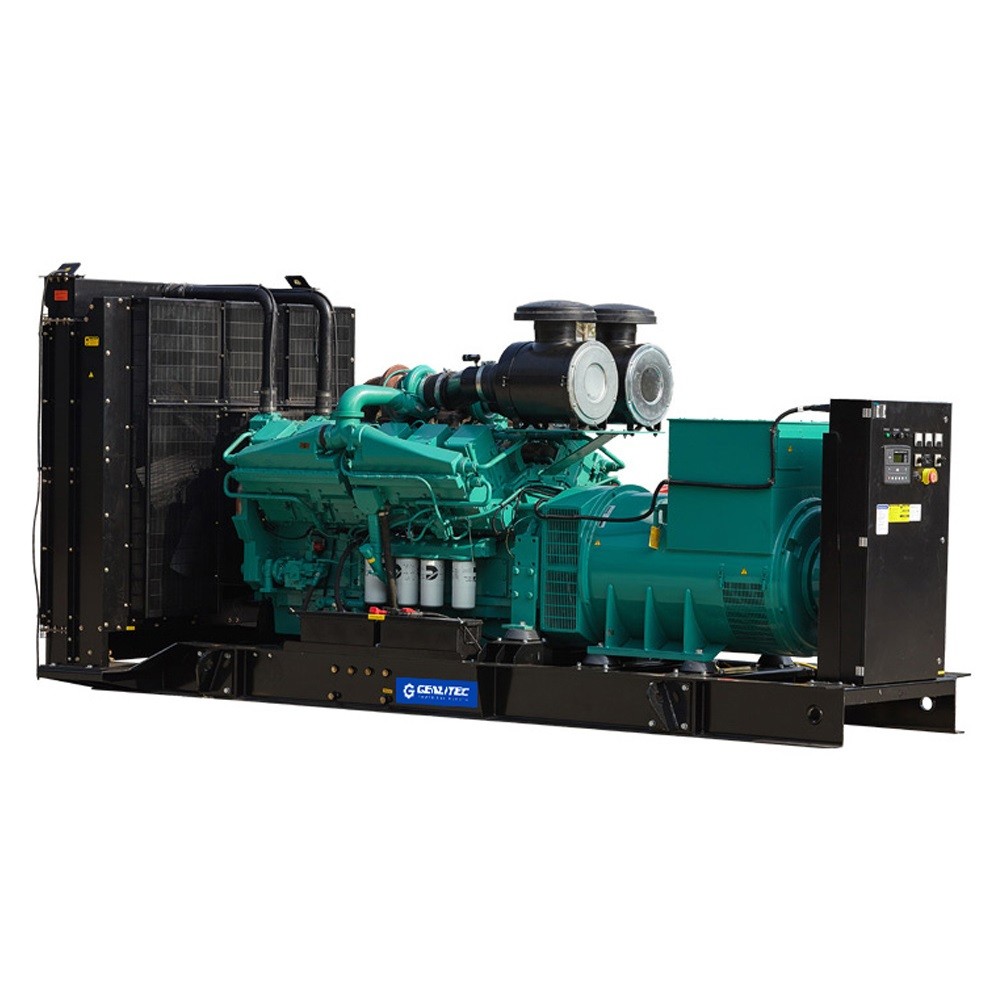

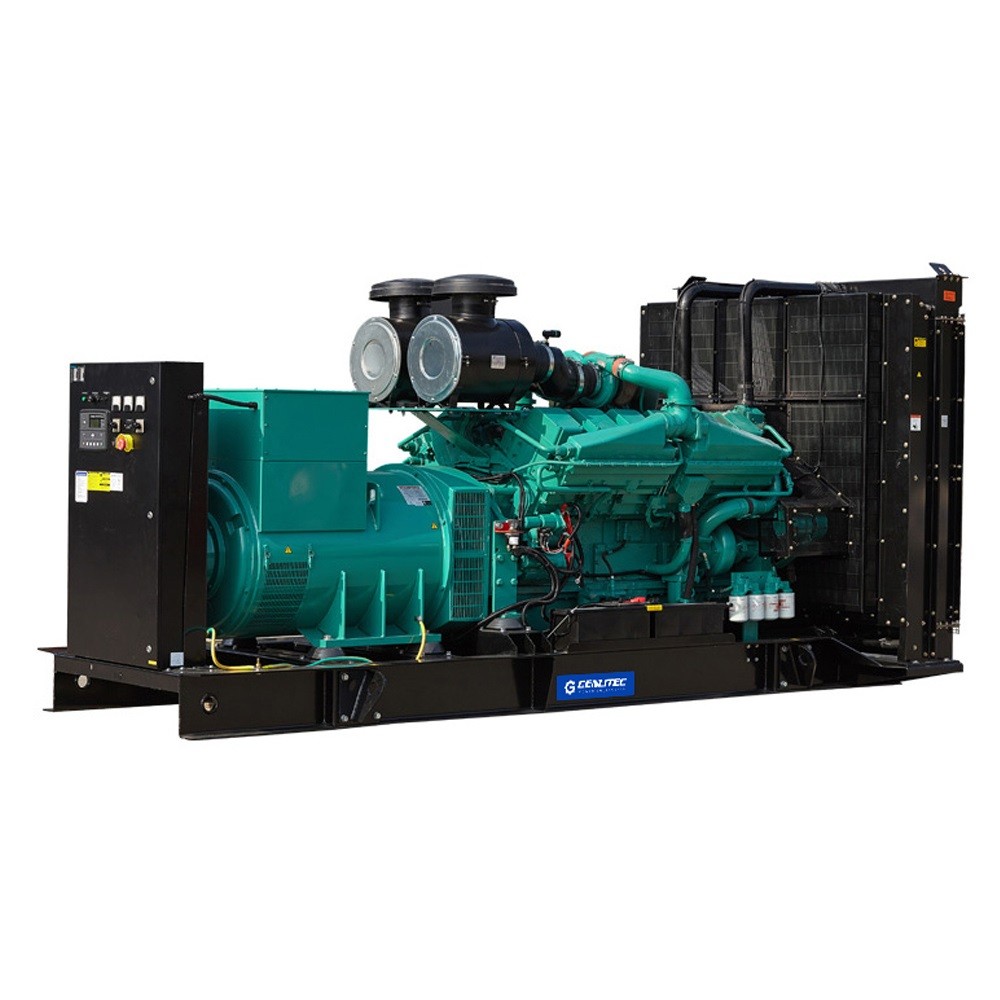

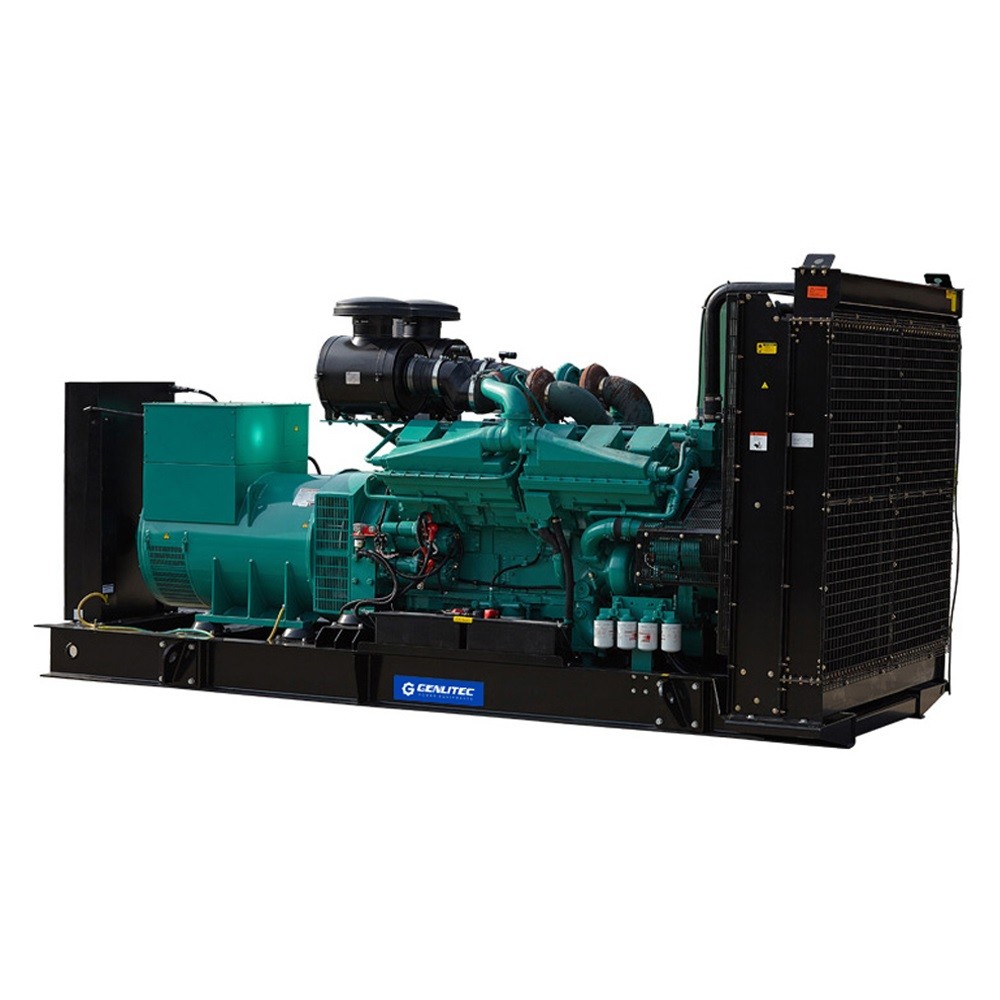

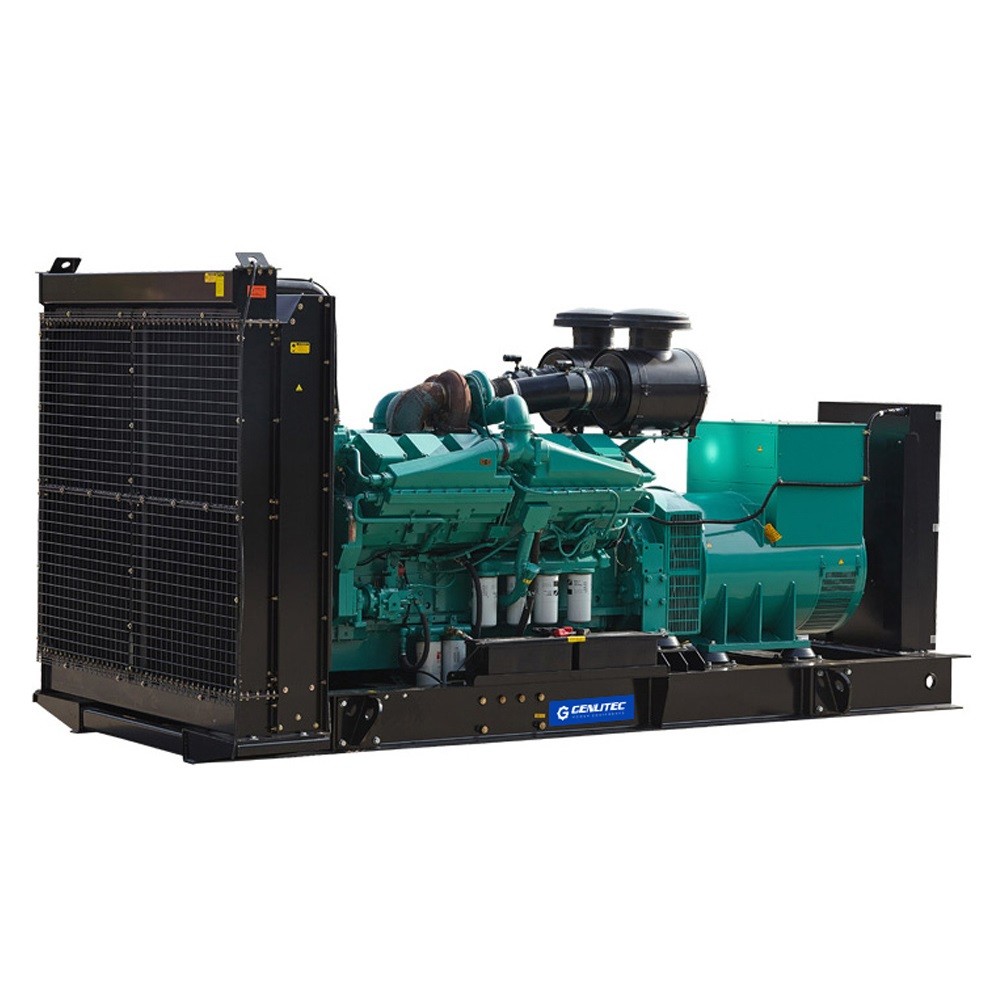

1200KW/1500KVA Cummins diesel generator set SPECIFICATIONS

• Standby Power: 1320KW/1650KVA
• Prime Power: 1200KW/1500KVA
• Frequency: 50Hz
• Speed: 1500 RPM
• Voltage: 220/380V (230/400V or 240/415V available according to different countries)
• Fuel Tank Capacity: 8~10 hours continuous running

ENGINE

• Powered by: CUMMINS
• Engine Model: KTA50-GS8

ALTERNATOR

• Alternator Model: GENLITEC S404G1200 (STAMFORD & LEROY SOMER alternators for options)
• High Efficiency
• IP23 Protection

CONTROL PANEL

• Emergency stop button
• Main circuit breaker
• Float baterry charger
• Manual/Autostart control panel
• Fuel level meter
• Controller power switch
• Alarm buzzer

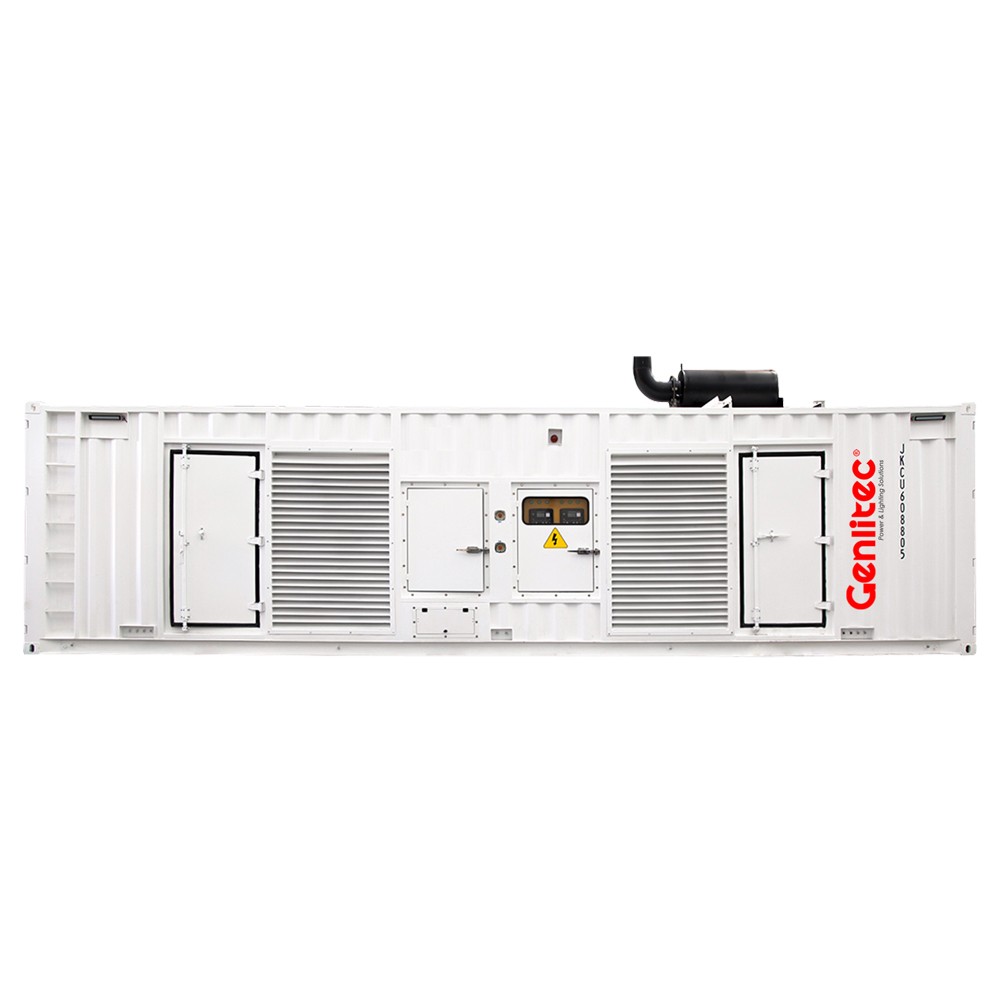

CONTAINERIZED SOUND ATTENUATED ENCLOSURE

• Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer
• Highly Corrosion Resistant Construction
• Brand New ISO 40'' Containerized Enclosure with CSC Certification

WARRANTY

• 12 months or 1000 working hours, whichever comes first

OPTIONS

• ATS panel (for automatic start & stop when electricity power off & on)
• Sychronization panel
• 12 hours fuel tank
• 24 hours fuel tank
• Power Sockets (CEE or AUS standard)
• Automatic fuel transfer pump
